商盟客服

您好，歡迎蒞臨遠通工業設備，歡迎咨詢...

正在加載

觸屏版二維碼

公司熱線： 13316615888
UDC系列接頭，美國CPC接頭，CPC接頭
UDC系列接頭，美國CPC接頭，CPC接頭

UDC系列接頭，美國CPC接頭，CPC接頭

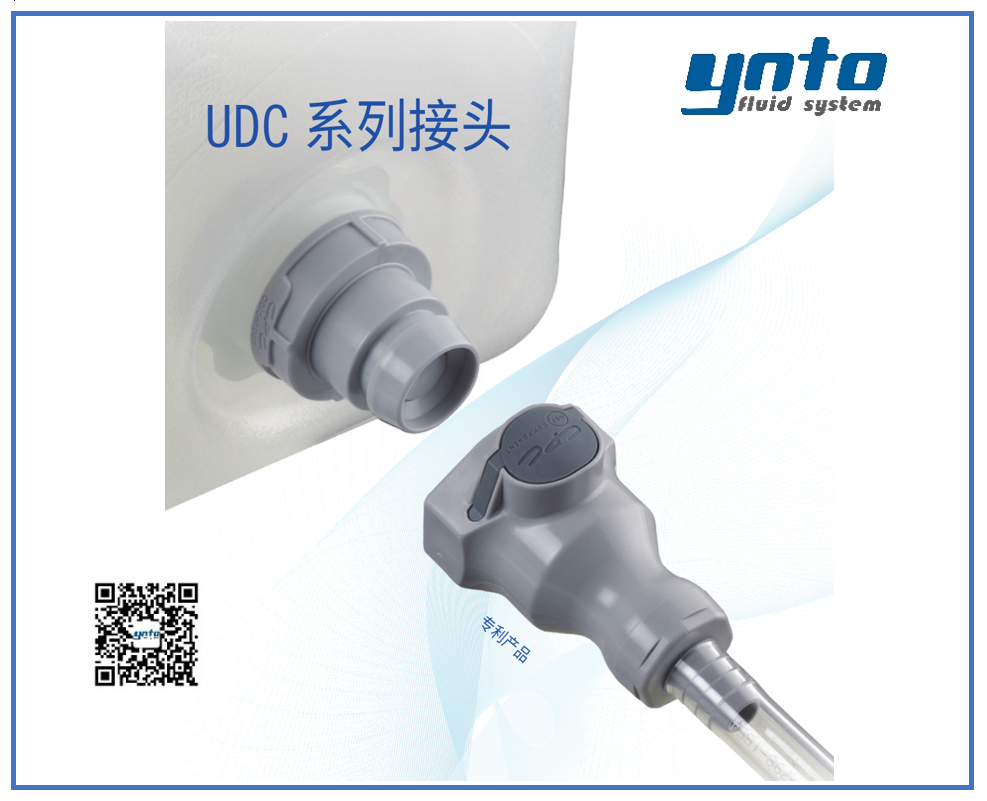

UDC 系列

已申請專利的3/8"流量萬能分配接頭（UDC）可為標準38mm螺紋或卡扣式瓶塞提供通用連接。可快速連接散裝包裝系統包括盒中袋（BIB），柔性和剛性包裝方式。自動無泄漏閥最大程度地降低了資金浪費和泄漏的危險。符合人體工學的設計和帶防護指鎖按鈕使接頭易于把握，操作簡單。

所有UDC 系 列 符合 NSF/ ANSI 169準則， 適合于分裝液體，調味品或其它食物基料。

UDC 系列還可提供可選RFID（射頻識別）能力。

Features and Benefits
Features Benefits
Universal 38mm cap Fits most manufacturers’ fitment necks
Flush face/non-spill valves Minimize spillage
Shrouded thumb latch Protects against accidental disconnects
RFID technology (iUDC only)
 		Helps maintain warranty, integrity, brand protection
Specifications
Pressure 20" Hg Vacuum to 15 psi, 1 bar (body only)
Temperature: 32°F to 160°F continuous, 0°C to 71°C continuous
Materials:
Main body components and valves: Polypropylene and Acetal
Thumb latch: Polypropylene
Springs: 316 stainless steel
O-rings (food grade): Silicone, Buna-N and EPDM
CIP adapter: Acetal
Color: Light gray with charcoal gray latch
Closure size: SP-400 38mm

WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.

IdentiQuik Specifications

RF Communication Range: Approximately 1”



Interface: RS232 & USB



Operating Voltage:

            RS-232: 8-24V

            USB: 5V



Power Consumption: 1.2W maximum



RFID Tag:

ISO 15693, 13.56MHz, 112 bytes programmable



Temperature: 32oF to 150oF (0oC to 65oC)

Cv Value
double shut-off Cv ~ 2.1 (30.27)

Legend
Legend
